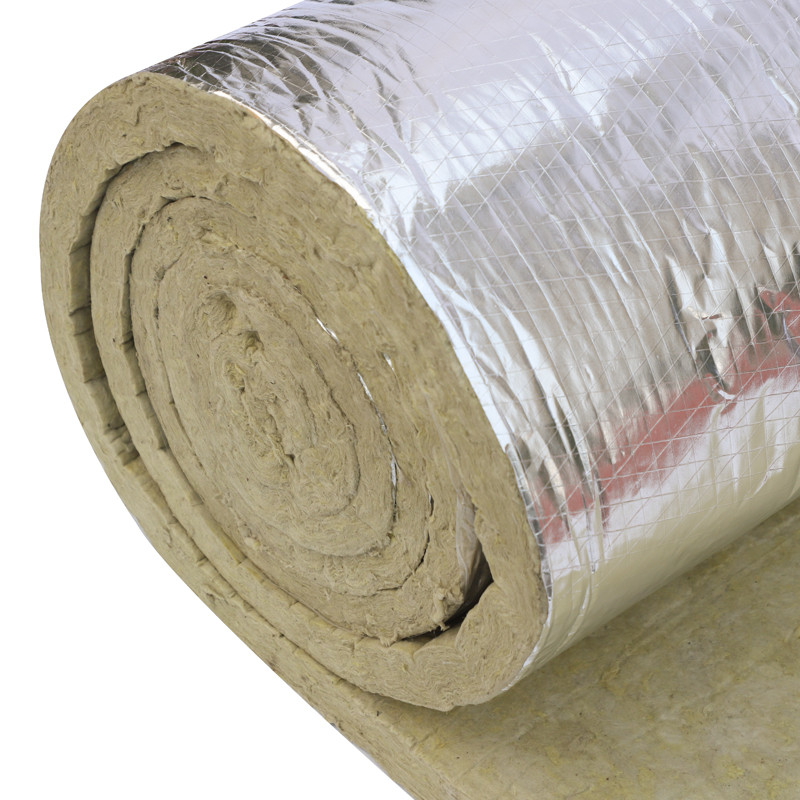

Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil

Basic Information
Place of Origin: China
Brand Name: FANRYN
Minimum Order Quantity: 1*40ft container
Packaging Details: Plastic bags
Delivery Time: 7-10 work days
Payment Terms: T/T
Detail Information
Fire Resistance: Class A1 Incombustibillty: A
Acidity Coefficient: 1.6 Acoustic Performance: Excellent Sound Insulation
Dimensional Stability: Less Than 1% Shrinkage At High Temperatures Compressive Strength: 50-200 KPa
Environmental Impact: Made From Natural And Recycled Materials Water Repellency: Non-wicking
Moisture Absorption: Less Than 1% Tensile Strength: 50-200 KPa
Flexural Strength: 50-200 KPa Density: 50-200 Kg/m3
Service Temp: 650 Thermal Conductivity: 0.035-0.044 W/mK
Sound Absorption: 0.75-1.25 NRC
Highlight:

Rock Wool Roll Insulation

,

Aluminum Foil Rock Wool Roll

,

Acoustic Control Rock Wool Roll


Product Description

1_02.jpgAcoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 1

Technical Data
Properties Blanket Standards
Density Tolerance ±10% GB/T 19686-2005



Fire Performance



Non-Combustible GB/T 5464-1999
Reaction to fire Class A1 GB/T 8624-2006
Thermal Conductivity(W/mK,at70±5℃) ≤0.044 GB/T 10295
Fiber Diameter 7(+/-1)um GB/T 5480. 4
Shot Content(shot size>0.25mm) ≤12% -
Moisture Content ≤0.5% -
Organic Matter Content ≤4% -
Melting Point >1000℃ -



Main application:

  • Insulation for external wall, roofing and floating floor
  • Insulation for big sized pipeline

Advantage:

  • Thermal Insulation
  • Fire Safety
  • Acoustic Control
  • No Corrosion
  • Environmental friendly
  • Moisture Resistance
  • Energy Conservation & Emissions Reduction

Specification:

Product Blanket
Density (kg/m3) 60-100
Size :L x W (mm) 600X5000
Thickness (mm) 30-150


Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 3

Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 4

Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 5



Product introduction of the stone wool Blanket

FANRYN Stone wool blanket is made from natural rocks such as basalt and limestone. The rocks are melted in

a cupola at temperature of >1450, and the molten lava is fiberized by a spinner. The inorganic fibers are bonded

together using a thermosetting resin to form the final product which is cut into suitable sizes for easy handling and

installation.



STONE WOOL blanket is widely used in public, commercial and residential buildings as well as industrial plants,

for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation,

acoustic control and condensation control.

Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 6

Acoustic Control Insulation Material Rock Wool Roll With Aluminum Foil 7

rock wool blanket

rock wool blanket
