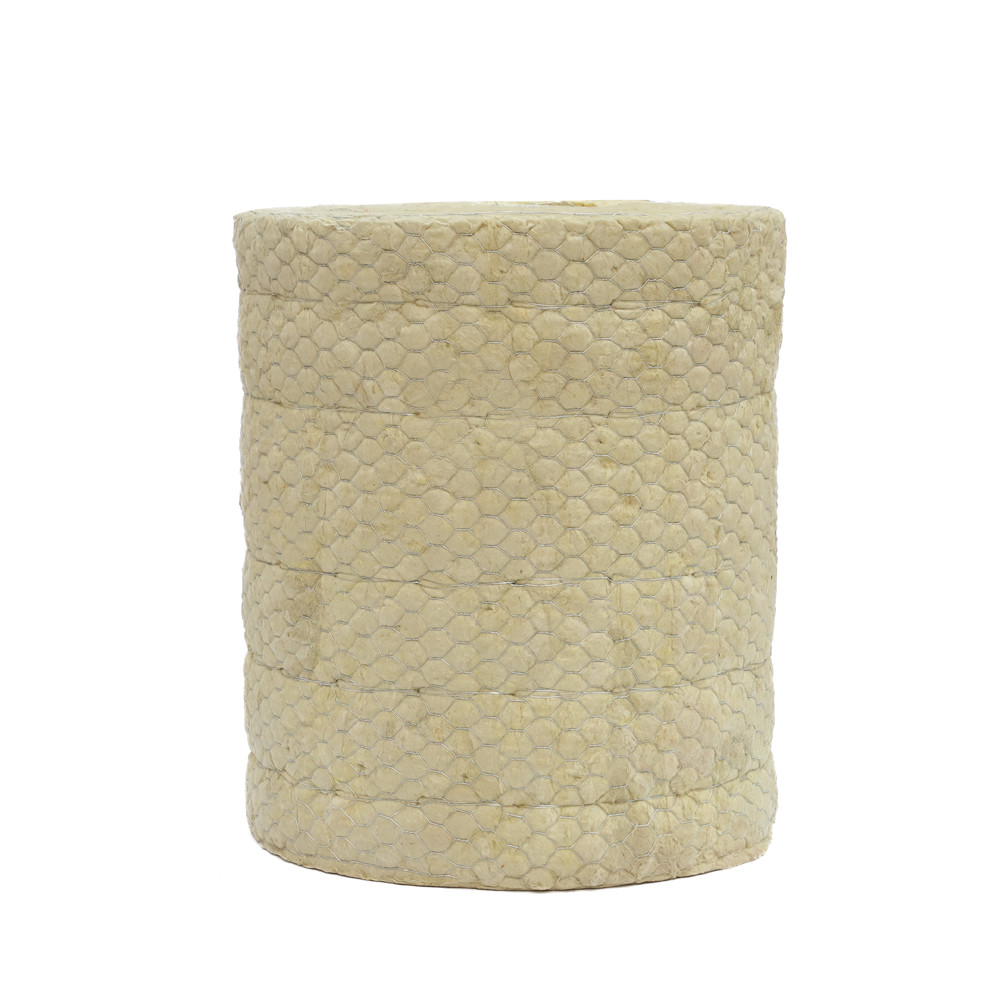

Tensile Strength ≥ 7 KPa Mineral Wool Blanket With Wire Steel 50 Mm Insulation Material

Basic Information
Place of Origin: China
Brand Name: FANRYN
Minimum Order Quantity: 1*40ft container
Packaging Details: Plastic bags
Delivery Time: 7-10 work days
Payment Terms: T/T
Detail Information
Fire Resistance: Class A Acoustic Performance: Excellent
Thermal Conductivity: 0.034-0.041 W/mK Chemical Resistance: Good
Water Absorption: ≤ 1% Moisture Resistance: Excellent
Dimensional Stability: ≤ 1% Material: Mineral Wool
Incombustibillty: A Environmental Friendly: Yes
Color: Brown Sound Absorption: 0.75-1.25 NRC
Compressive Strength: ≥ 40 KPa Acidity Coefficient: 1.6
Tensile Strength: ≥ 7 KPa
Highlight:

Tensile Strength ≥ 7 KPa Mineral Wool Blanket

,

Mineral Wool Blanket Insulation Material


Product Description

Mineral Wool Blanket

1_02.jpg50 mm Insulation Material Mineral Wool Blanket With Wire Steel

Technical Data
Properties Blanket Standards
Density Tolerance ±10% GB/T 19686-2005



Fire Performance



Non-Combustible GB/T 5464-1999
Reaction to fire Class A1 GB/T 8624-2006
Thermal Conductivity(W/mK,at70±5℃) ≤0.044 GB/T 10295
Fiber Diameter 7(+/-1)um GB/T 5480. 4
Shot Content(shot size>0.25mm) ≤12% -
Moisture Content ≤0.5% -
Organic Matter Content ≤4% -
Melting Point >1000℃ -



Main application:



Metallurgical field: In the metallurgical industry, rock wool is used for heat preservation and insulation of various

high-temperature equipment. For example, the use of rock wool in smelting furnaces, heating furnaces and other

equipment can effectively reduce heat loss, improve the thermal efficiency of the equipment, and also reduce

energy consumption and production costs.



Ship field: In the ship field, rock wool is used for thermal insulation of hulls, cabins and machinery and equipment.

It can effectively maintain the temperature in the cabin and improve the living and working environment of the crew.



Advantage:

  • Thermal Insulation
  • Fire Safety
  • Acoustic Control
  • No Corrosion
  • Environmental friendly
  • Moisture Resistance
  • Energy Conservation & Emissions Reduction

Specification:

Product Blanket
Density (kg/m3) 60-100
Size :L x W (mm) 600X5000
Thickness (mm) 30-150


50 mm Insulation Material Mineral Wool Blanket With Wire Steel





50 mm Insulation Material Mineral Wool Blanket With Wire Steel





50 mm Insulation Material Mineral Wool Blanket With Wire Steel

50 mm Insulation Material Mineral Wool Blanket With Wire Steel







Product introduction of the stone wool Blanket

FANRYN Stone wool blanket is made from natural rocks such as basalt and limestone. The rocks are melted in

a cupola at temperature of >1450, and the molten lava is fiberized by a spinner. The inorganic fibers are bonded

together using a thermosetting resin to form the final product which is cut into suitable sizes for easy handling and

installation.



STONE WOOL blanket is widely used in public, commercial and residential buildings as well as industrial plants,

for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation,

acoustic control and condensation control.

Tensile Strength ≥ 7 KPa Mineral Wool Blanket With Wire Steel 50 Mm Insulation Material 7

50 mm Insulation Material Mineral Wool Blanket With Wire Steel

rock wool blanket

rock wool blanket
