Fireproof 50 mm Wire Meshed Insulation Material Mineral Wool Roll

Basic Information
Place of Origin: China
Brand Name: FANRYN
Minimum Order Quantity: 1*40ft container
Packaging Details: Plastic bags
Delivery Time: 7-10 work days
Payment Terms: T/T
Detail Information
Fire Resistance: Class A Acoustic Performance: Excellent
Thermal Conductivity: 0.034-0.041 W/mK Chemical Resistance: Good
Water Absorption: ≤ 1% Moisture Resistance: Excellent
Dimensional Stability: ≤ 1% Material: Mineral Wool
Incombustibillty: A Environmental Friendly: Yes
Color: Brown Sound Absorption: 0.75-1.25 NRC
Compressive Strength: ≥ 40 KPa Acidity Coefficient: 1.6
Tensile Strength: ≥ 7 KPa
Highlight:

Fireproof Mineral Wool Roll

,

50 mm Mineral Wool Roll

,

Mineral Wool Roll Insulation Material


Product Description

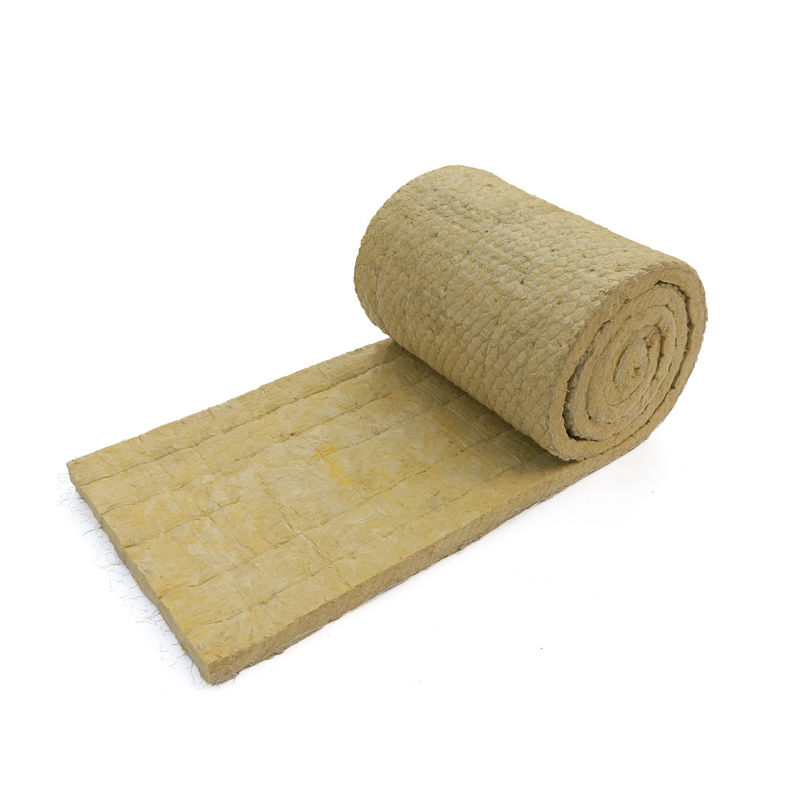

Mineral Wool Blanket

1_02.jpgFireproof 50 mm Wire Meshed Insulation Material Mineral Wool Roll 1

Technical Data
Properties Blanket Standards
Density Tolerance ±10% GB/T 19686-2005



Fire Performance



Non-Combustible GB/T 5464-1999
Reaction to fire Class A1 GB/T 8624-2006
Thermal Conductivity(W/mK,at70±5℃) ≤0.044 GB/T 10295
Fiber Diameter 7(+/-1)um GB/T 5480. 4
Shot Content(shot size>0.25mm) ≤12% -
Moisture Content ≤0.5% -
Organic Matter Content ≤4% -
Melting Point >1000℃ -



Main application:

Application fields of rock wool


Construction field: Rock wool is widely used in the construction field, mainly used for thermal insulation of

building exterior walls, roofs, doors and windows. The use of rock wool can effectively improve the thermal

insulation performance of buildings, reduce energy consumption and heat loss, and also help improve the

indoor environment.

Electric power field: In the electric power field, rock wool is widely used in thermal insulation of power plants,

substations and other facilities. It can effectively prevent heat loss and improve the thermal efficiency of

equipment, while also reducing energy consumption and operating costs.



Advantage:

  • Thermal Insulation
  • Fire Safety
  • Acoustic Control
  • No Corrosion
  • Environmental friendly
  • Moisture Resistance
  • Energy Conservation & Emissions Reduction

Specification:

Product Blanket
Density (kg/m3) 60-100
Size :L x W (mm) 600X5000
Thickness (mm) 30-150


Fireproof 50 mm Wire Meshed Insulation Material Mineral Wool Roll 3





Fireproof 50 mm Wire Meshed Insulation Material Mineral Wool Roll 4





Fireproof 50 mm Wire Meshed Insulation Material Mineral Wool Roll 5

Fireproof 50 mm Wire Meshed Insulation Material Mineral Wool Roll 6







Product introduction of the stone wool Blanket

FANRYN Stone wool blanket is made from natural rocks such as basalt and limestone. The rocks are melted in

a cupola at temperature of >1450, and the molten lava is fiberized by a spinner. The inorganic fibers are bonded

together using a thermosetting resin to form the final product which is cut into suitable sizes for easy handling and

installation.



STONE WOOL blanket is widely used in public, commercial and residential buildings as well as industrial plants,

for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation,

acoustic control and condensation control.

Fireproof 50 mm Wire Meshed Insulation Material Mineral Wool Roll 7

Fireproof 50 mm Wire Meshed Insulation Material Mineral Wool Roll 8

rock wool blanket

rock wool blanket
