Fire Resistance: | Class A | Acoustic Performance: | Excellent |
---|---|---|---|
Thermal Conductivity: | 0.034-0.041 W/mK | Chemical Resistance: | Good |
Water Absorption: | ≤ 1% | Moisture Resistance: | Excellent |
Dimensional Stability: | ≤ 1% | Material: | Mineral Wool |
Incombustibillty: | A | Environmental Friendly: | Yes |
Color: | Brown | Sound Absorption: | 0.75-1.25 NRC |
Compressive Strength: | ≥ 40 KPa | Acidity Coefficient: | 1.6 |
Tensile Strength: | ≥ 7 KPa | ||
Highlight: | 80 Mm Stone Wool Roll Insulation Material,80 Mm Mineral Wool Blanket,Mineral Wool Blanket With Wire Steel |
Thermal insulation of rock wool: Rock wool has a small thermal conductivity, which can ensure good thermal
insulation and heat insulation effects. In various types of ships, in order to ensure the safety of passengers
and cargo, an insulation material must be used, and rock wool is one of the options.
Technical Data | ||
Properties | Blanket | Standards |
Density Tolerance | ±10% | GB/T 19686-2005 |
Fire Performance
|
Non-Combustible | GB/T 5464-1999 |
Reaction to fire Class A1 | GB/T 8624-2006 | |
Thermal Conductivity(W/mK,at70±5℃) | ≤0.044 | GB/T 10295 |
Fiber Diameter | 7(+/-1)um | GB/T 5480. 4 |
Shot Content(shot size>0.25mm) | ≤12% | - |
Moisture Content | ≤0.5% | - |
Organic Matter Content | ≤4% | - |
Melting Point | >1000℃ | - |
Main application:
Advantage:
Specification:
Product | Blanket |
Density (kg/m3) | 60-100 |
Size :L x W (mm) | 600X5000 |
Thickness (mm) | 30-150 |

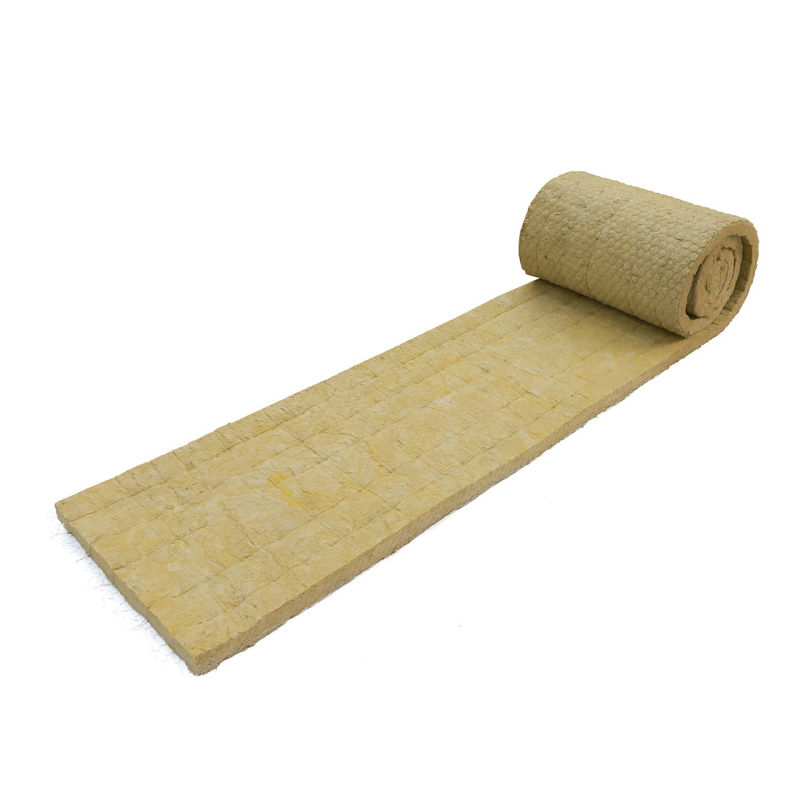

Product introduction of the stone wool Blanket
FANRYN Stone wool blanket is made from natural rocks such as basalt and limestone. The rocks are melted in
a cupola at temperature of >1450 ℃, and the molten lava is fiberized by a spinner. The inorganic fibers are bonded
together using a thermosetting resin to form the final product which is cut into suitable sizes for easy handling and
installation.
STONE WOOL blanket is widely used in public, commercial and residential buildings as well as industrial plants,
for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation,
acoustic control and condensation control.
