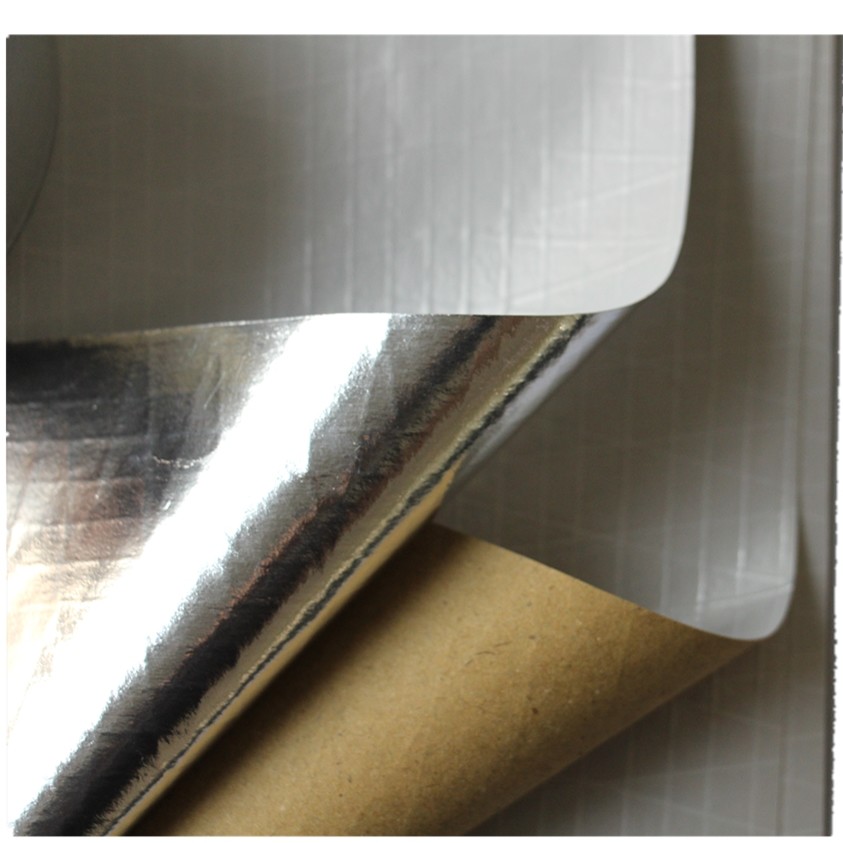

Product Introduction Of the HEAT-SEALING FSK FACING
Heating sealing FSK facing offers good thermal insulation performance, and it is widely used as vapor barrier or radiant
barrier materials. It can be laminated with other types of heat insulation materials such as glass wool, rock wool, etc.
By heating method, without any need of additional adhesive. Hence, it is environment friendly. It also offers good
bonding strength.
Heating sealing FSK facing is easy handing, high tensile strength and good flexibility. So it is a kind of popular building
insulation material.
We are specialized heat sealing insulation facing manufacturer in China. We offer facing material rolls of different sizes
to suit customers' demands.
Product Parameter Of The HEAT-SEALING FSK FACING
| Product |
Construction |
| FKV50 |
Foil: 7 micron/ Polyethylene/ 50gsm Kraft paper/ Polyethylene (25u) |
| FSV 1808B |
Foil: 18micron/ 2-ways scrim (5x5mm)/ Polyethylene (20u) |
| FSKV 7150A |
Foil: 7 micron/ 3-ways scrim (8x12 threads/100mm)/ Polyethylene/ 50gsm Kraft paper/ Polyethylene (25u) |
| FSKV 7150B |
Foil: 7 micron/ 2-ways scrim (12.5x12.5mm)/ Polyethylene/ 50gsm Kraft paper/ Polyethylene (25u) |
| FSKV 7160A |
Foil: 7 micron/ 3-ways scrim (8x12 threads/100mm)/ Polyethylene/ 60gsm Kraft paper/ Polyethylene (25u) |
| FSKV 7160B |
Foil: 7 micron/ 2-ways scrim (12.5x12.5mm)/ Polyethylene/ 60gsm Kraft paper/ Polyethylene (25u) |
| FKSV 7160A |
Foil:7micron/ Fire retardant adhesive/ 60gsm Kraft paper/ 3-ways scrim (8x12 threads/100mm)/ Polyethylene (25u) |
TYPICAL PHYSICAL PROPERTIES
| Product |
Basic weight (g/m²) |
Tensile MD (n/25mm) |
Tensile XD (n/25mm) |
Bursting Strength(n) |
WVTR (ng/N.s) |
Reflectivity of Foil Surface |
Temperature Resistance (℃) |
Fire Rating |
| FKV50 |
95 |
105 |
55 |
25 |
1.15 |
85% |
-29~ +66 |
----- |
| FSV 1808B |
75 |
70 |
70 |
30 |
1.15 |
85% |
-29~ +66 |
----- |
| FSKV 7150A |
102 |
125 |
65 |
30 |
1.15 |
85% |
-29~ +66 |
----- |
| FSKV 7150B |
102 |
125 |
70 |
30 |
1.15 |
85% |
-29~ +66 |
----- |
| FSKV 7160A |
110 |
132 |
75 |
30 |
1.15 |
85% |
-29~ +66 |
----- |
| FSKV 7160B |
112 |
140 |
80 |
33 |
1.15 |
85% |
-29~ +66 |
----- |
| FKSV 7160A |
110 |
132 |
75 |
42 |
1.15 |
85% |
-29~ +66 |
Class 1 |
Product Feature And Application Of The HEAT-SEALING FSK FACING
Kraft paper standard weight is 50 gsm and 60 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m,2500m
Inner core: 76mm
APPLICATION:
Heat-sealing foil insulation mainly applied for on-line lamination of glass wool, rock wool, and mineral wool by heating
lamination. Its benefit is better corrosion resistance, and no need to apply extra adhesive for duct wrap.
