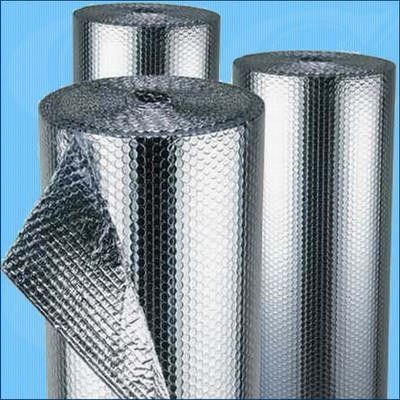

Product Introduction Of The ALUMINUM BUBBLE FOIL INSULATION
This new advanced product is an excellent insulation material, can be well-suited to both extreme cold and hot climate.
The high density pure aluminum foil can reflect 97% radiation that penetrate through sheet iron, wall concrete or wood,
and flowing air stay in the air bubble cell can reduce the heat conduction and block heat convection. It's also an
environmental-protected insulation material, as well as good moisture barrier.
Product Characterics Of The ALUMINUM BUBBLE FOIL INSULATION
● No odor and toxicity , non-carcinogenic
● Puncture and tear resistance
● Strong and durable performance in both cold and hot climate
● Clean and light weight deigned to easy installation
● Radiant barrier designed to improve energy performance of building
● Good vapor barrier designed to prevent penetration of water and moisture air.
Product Parameter Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum / Bubble / Aluminum
| Aluminum + Bubble + Aluminum |
| ITEM |
UNIT |
VALUE |
| Aluminum thick |
micron |
7 |
| Bubble size (Diameter*Height) |
mm |
10*4 |
| Bubble weight |
kg/m² |
0.26 |
| Emissivity |
COEF |
0.03 ~ 0.04 |
| Reflectivity |
% |
95~97 |
| Water vapor transmission |
G/m²KPA |
0.012 |
| Service temperature range |
℃ |
-40 ~ + 80 |
| Tensile Strength (MD / TD) |
Mpa |
34 / 26 |
| Linear Shrinkage |
----- |
None |
| Corrosion |
----- |
None |
| Pliability |
----- |
No cracking |
| Mold and mildew |
----- |
No growth |
| Fire rating |
----- |
Class A / Class 1 |
OTHERS:
Max width: 1.50m
Length: according to customer request
Bubble diameter: 6mm, 10mm, 12mm, 20mm, 25mm
Product Parameter Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum / Double- layer bubble / Aluminum
| Aluminum + Bubble + Aluminum |
| ITEM |
UNIT |
VALUE |
| Aluminum thick |
micron |
7 |
| Bubble size (Diameter*Height) |
mm |
10*4 |
| Bubble weight |
kg/m² |
0.26 |
| Emissivity |
COEF |
0.03 ~ 0.04 |
| Reflectivity |
% |
95~97 |
| Water vapor transmission |
G/m²KPA |
0.012 |
| Service temperature range |
℃ |
-40 ~ + 80 |
| Tensile Strength (MD / TD) |
Mpa |
34 / 26 |
| Linear Shrinkage |
----- |
None |
| Corrosion |
----- |
None |
| Pliability |
----- |
No cracking |
| Mold and mildew |
----- |
No growth |
| Fire rating |
----- |
Class A / Class 1 |
OTHERS:
Max width: 1.50m
Length: according to customer request
Bubble diameter: 6mm, 10mm, 12mm, 20mm, 25mm
Product Introduction Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum foil / Woven Cloth / Bubble
/ Woven Cloth / Aluminum
This material is added PE woven cloth between the aluminum foil and bubble foil, it can hence the tensile strength
and tear resistance, can be stable-working in roofing and wall system.
Product Parameter Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum foil / Woven Cloth / Bubble /
Woven Cloth / Aluminum
| Aluminum + Bubble + Aluminum |
| ITEM |
UNIT |
VALUE |
| Aluminum thick |
micron |
7 |
| Bubble size (Diameter*Height) |
mm |
10*7 |
| Bubble weight |
kg/m² |
0.3 |
| Emissivity |
COEF |
0.03 ~ 0.04 |
| Reflectivity |
% |
95~97 |
| Water vapor transmission |
G/m²KPA |
0.012 |
| Service temperature range |
℃ |
-40 ~ + 80 |
| Tensile Strength (MD / TD) |
Mpa |
34 / 26 |
| Linear Shrinkage |
----- |
None |
| Corrosion |
----- |
None |
| Pliability |
----- |
No cracking |
| Mold and mildew |
----- |
No growth |
| Fire rating |
----- |
Class A / Class 1 |
OTHERS:
Max width: 1.50m
Length: according to customer request
Bubble diameter: 6mm, 10mm, 12mm, 20mm, 25mm
Product Feature And Application Of The ALUMINUM BUBBLE FOIL
Production Details Of The ALUMINUM BUBBLE FOIL
