Product Description:

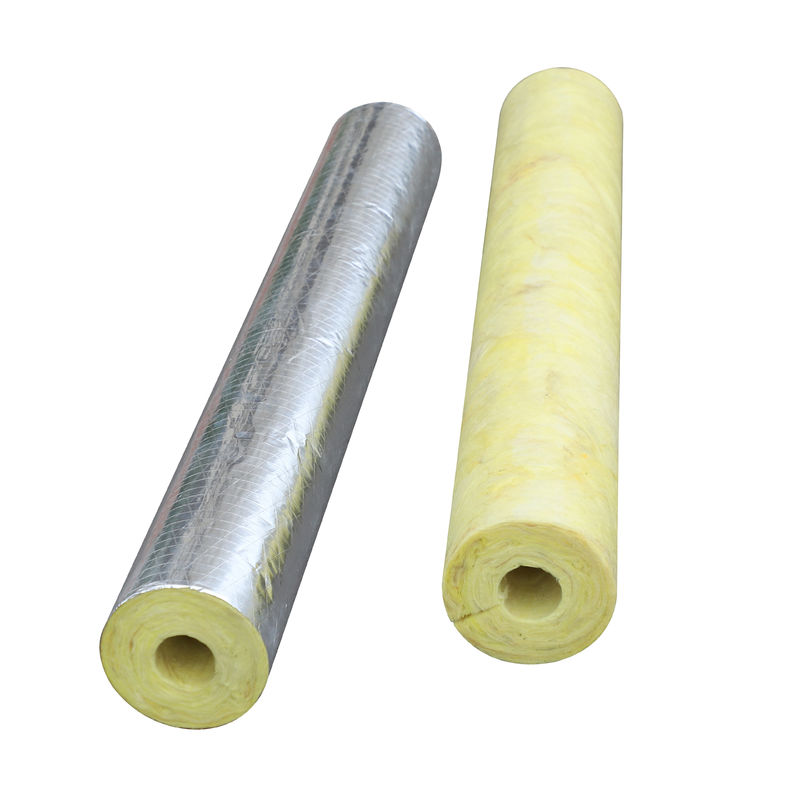

Glass wool Pipe Section is an affordable insulation material that is both lightweight and simple to install. Its superior heat and sound insulation properties remain effective in extremely high and low temperature environments (from -85 degrees to 454 degrees).
As an insulating material, Glass Wool Pipe Section is preferred in many applications due to its cost-effectiveness and versatility. It is widely used in the construction industry to insulate pipes, floors, roofs and walls from heat loss and thermal conductivity.
Beyond its affordability and insulation properties, Glass Wool Pipe Section is also known for its safety and sustainability. It is non-toxic and non-combustible insulation material that is made from recycled glass, making it an eco-friendly choice for many consumers.
Product parameter of the thermal insulation pipe
Recommend Thickness List(mm)
| Pipeline System Type |
The Thickness of glasswood pipe shell applied in different pipeline (mm) |
| Liquid Temperature Range ℃ |
Diameter of Branches Under 50mm |
Under 25mm |
32-50 |
64-100 |
125-150 |
Above 200mm |
| Air System Steaming and Water System High Temperature/ High Pressure System |
152-238 |
40 |
64 |
64 |
75 |
89 |
89 |
| Medium Temperature/ Medium Pressure System |
122-151 |
40 |
50 |
64 |
64 |
75 |
75 |
| low Temperature/ low Pressure System |
94-121 |
25 |
40 |
40 |
50 |
50 |
50 |
| low Temperature System |
49-93 |
13 |
25 |
25 |
40 |
40 |
40 |
| Steaming Condensator of Watering System |
Any Temperature |
25 |
25 |
40 |
50 |
50 |
50 |
Equivalent Thickness of Surface Cooling Prevention
| Environment Temperature |
Relative Humidity |
System Working Temperature |
| 2℃ |
7℃ |
13℃ |
| 38℃ |
50%-60% |
25 |
25 |
25 |
| 70% |
40 |
30 |
30 |
| 80% |
75 |
60 |
50 |
| 85% |
100 |
90 |
75 |
| 32℃ |
50%-60% |
25 |
25 |
25 |
| 70% |
25 |
25 |
25 |
| 80% |
50 |
50 |
40 |
| 85% |
80 |
75 |
60 |
| 27℃ |
50%-70% |
25 |
25 |
25 |
| 80% |
50 |
40 |
30 |
| 85% |
75 |
65 |
50 |
| 21℃ |
50%-70% |
25 |
25 |
25 |
| 80% |
50 |
40 |
30 |
| 85% |
75 |
50 |
40 |
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the
waterproofing coat or PVC plastic shell if necessary.
Product size of the glass wool pipe
| Density(kg/m3) |
Thickness(mm) |
Length (mm) |
Diameter (mm) |
| 48-80 |
25-90 |
1000,1200 |
18-529 |
Applications:
The Fanryn Fiberglass Pipe Insulation is available in two types: pre-slit and unslit. The pre-slit insulation is designed for easy installation and can be quickly applied to pipes and ducts. The unslit insulation is ideal for custom applications where the installer needs to cut the insulation to size. Both types of insulation are available in self-adhesive and adhesive tape installation methods, making installation quick and easy.
With its excellent chemical resistance, the Fanryn Fiberglass Pipe Insulation is the perfect solution for protecting pipes and ducts from harsh chemicals and other corrosive substances. The insulation is also fireproof and has been certified with an SGS fireproof certificate, ensuring that it meets industry standards for safety and quality.
When it comes to packaging, the Fanryn Fiberglass Pipe Insulation comes in plastic bags for easy storage and transport. The minimum order quantity for this product is 1*40 ft container, and the price is based on the specifications of the insulation. The delivery time for this product is 7-15 work days, and payment terms are 100% TT.
The Fanryn Fiberglass Pipe Insulation is proudly made in China and is available for purchase in large quantities. With a supply ability of 300 containers per month, this insulation product is an excellent choice for contractors and businesses looking for a reliable and cost-effective insulation solution. So, whether you need to insulate hot/cold water pipes, HVAC ducts, or steam pipes, the Fanryn Fiberglass Pipe Insulation is the perfect product for the job.
Support and Services:
Our Fiberglass Pipe Insulation product is designed to provide thermal insulation for both hot and cold piping systems. Made from high-quality fiberglass material, it offers excellent resistance to moisture, corrosion, and fungus growth.
We provide technical support and services to our customers to ensure proper installation and maintenance of the product. Our team of experts can assist with product selection, installation guidance, and troubleshooting. Additionally, we offer customized insulation solutions to meet specific project requirements.
Our product is backed by a limited warranty to ensure customer satisfaction and peace of mind. Contact us for more information on our technical support and services.
Packing and Shipping:
Product Packaging:
- The fiberglass pipe insulation product will be packed securely in a cardboard box.
- The box dimensions will be 4 feet by 4 feet by 8 feet.
- The box will be labeled with the product name, quantity, and handling instructions.
Shipping:
- The fiberglass pipe insulation product will be shipped via a freight carrier.
- Shipping will be arranged within 2 business days of receiving the order.
- The estimated delivery time will be communicated to the customer.
- The customer will be provided with a tracking number to track the shipment.
FAQ:
Q: What is the brand name of the fiberglass pipe insulation?
A: The brand name of the fiberglass pipe insulation is Fanryn.
Q: Where is the fiberglass pipe insulation manufactured?
A: The fiberglass pipe insulation is manufactured in China.
Q: Is the fiberglass pipe insulation certified?
A: Yes, the fiberglass pipe insulation is certified with SGS fireproof certificate.
Q: What is the minimum order quantity for the fiberglass pipe insulation?
A: The minimum order quantity for the fiberglass pipe insulation is 1*40 ft container.
Q: What is the price of the fiberglass pipe insulation?
A: The price of the fiberglass pipe insulation is based on the specifications.
Q: What is the packaging for the fiberglass pipe insulation?
A: The packaging for the fiberglass pipe insulation is plastic bags.
Q: What is the delivery time for the fiberglass pipe insulation?
A: The delivery time for the fiberglass pipe insulation is 7-15 work days.
Q: What are the payment terms for the fiberglass pipe insulation?
A: The payment terms for the fiberglass pipe insulation are 100% TT.
Q: What is the supply ability for the fiberglass pipe insulation?
A: The supply ability for the fiberglass pipe insulation is 300 containers per month.
