Product Description:

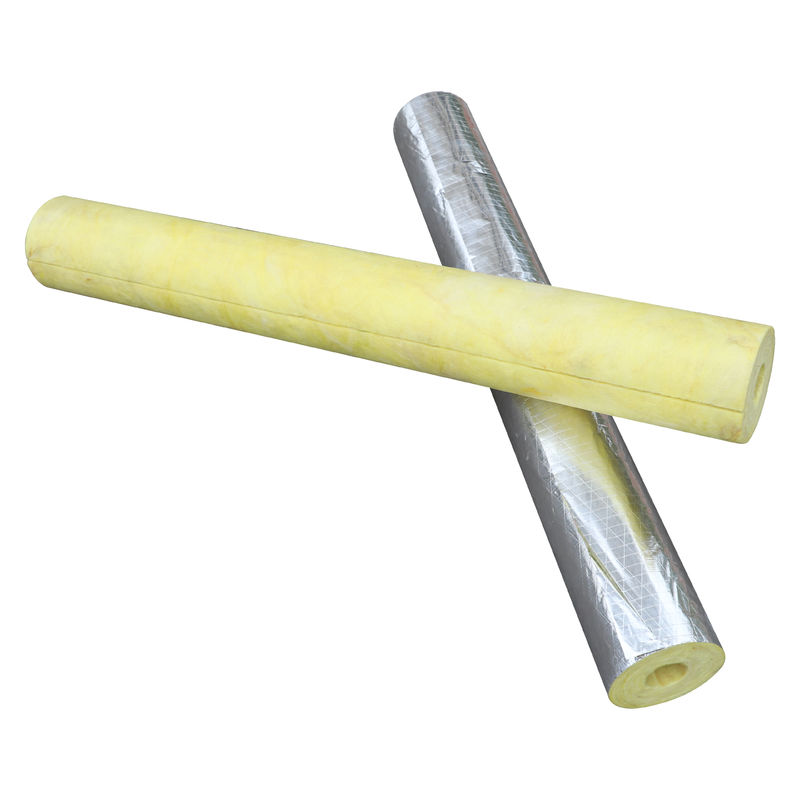

Glass wool Pipe Section is a type of insulation material that is both affordable and easy to install. It is an ideal solution for insulating pipes. The material is lightweight, making it easy to handle.
One of the most significant benefits of Glass wool Pipe Section is that it offers excellent heat and sound insulation properties. The material can withstand extreme temperature conditions ranging from -85 degrees to 454 degrees. So, it serves as an excellent choice for insulating pipes in various industrial and commercial settings.
Product parameter of the thermal insulation pipe
Recommend Thickness List(mm)
| Pipeline System Type |
The Thickness of glasswood pipe shell applied in different pipeline (mm) |
| Liquid Temperature Range ℃ |
Diameter of Branches Under 50mm |
Under 25mm |
32-50 |
64-100 |
125-150 |
Above 200mm |
| Air System Steaming and Water System High Temperature/ High Pressure System |
152-238 |
40 |
64 |
64 |
75 |
89 |
89 |
| Medium Temperature/ Medium Pressure System |
122-151 |
40 |
50 |
64 |
64 |
75 |
75 |
| low Temperature/ low Pressure System |
94-121 |
25 |
40 |
40 |
50 |
50 |
50 |
| low Temperature System |
49-93 |
13 |
25 |
25 |
40 |
40 |
40 |
| Steaming Condensator of Watering System |
Any Temperature |
25 |
25 |
40 |
50 |
50 |
50 |
Equivalent Thickness of Surface Cooling Prevention
| Environment Temperature |
Relative Humidity |
System Working Temperature |
| 2℃ |
7℃ |
13℃ |
| 38℃ |
50%-60% |
25 |
25 |
25 |
| 70% |
40 |
30 |
30 |
| 80% |
75 |
60 |
50 |
| 85% |
100 |
90 |
75 |
| 32℃ |
50%-60% |
25 |
25 |
25 |
| 70% |
25 |
25 |
25 |
| 80% |
50 |
50 |
40 |
| 85% |
80 |
75 |
60 |
| 27℃ |
50%-70% |
25 |
25 |
25 |
| 80% |
50 |
40 |
30 |
| 85% |
75 |
65 |
50 |
| 21℃ |
50%-70% |
25 |
25 |
25 |
| 80% |
50 |
40 |
30 |
| 85% |
75 |
50 |
40 |
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the
waterproofing coat or PVC plastic shell if necessary.
Product size of the glass wool pipe
| Density(kg/m3) |
Thickness(mm) |
Length (mm) |
Diameter (mm) |
| 48-80 |
25-90 |
1000,1200 |
18-529 |
Applications:
This piping insulation with fiberglass is sourced from China and has been certified by SGS for its fireproof properties. The minimum order quantity for this product is 1*40 ft container, and the price is based on the specifications of the order. The product is packaged in plastic bags, and delivery time ranges from 7-15 work days. Payment terms are 100% TT, and the supply ability is 300 containers per month.
The installation method for this Fiberglass Pipe Insulation is self-adhesive or adhesive tape, making it easy to apply and providing a secure fit. The product has a water content of ≤1%, ensuring that it will not absorb moisture or become waterlogged over time.
The Fanryn Fiberglass Pipe Insulation has excellent chemical resistance, making it an ideal choice for use in harsh environments where exposure to chemicals is a concern. Whether you are looking to insulate hot water pipes in a commercial building or steam pipes in an industrial setting, this product is up to the task.
Overall, the Fiberglass Pipe Insulation from Fanryn is a versatile and reliable choice for anyone looking to improve the energy efficiency and temperature control of their pipes and ducts. With its high-quality fiberglass material, easy installation, and excellent chemical resistance, this product is sure to meet your needs and exceed your expectations.
Support and Services:
Fiberglass Pipe Insulation Technical Support:
- Expert technical assistance with product selection and installation.
- Guidance on proper handling, storage, and maintenance of the insulation.
- Assistance with troubleshooting and problem-solving.
- Access to product documentation and specifications.
Fiberglass Pipe Insulation Services:
- Custom fabrication of insulation for specific applications.
- Delivery and installation services for large-scale projects.
- Inspection and maintenance services to ensure optimal performance and longevity of the insulation.
- Training and education for contractors, installers, and building owners on proper installation and maintenance techniques.
Packing and Shipping:
Product Packaging:
- The fiberglass pipe insulation is packed in individual bags.
- The bags are then packed in boxes.
- The boxes are labeled with product information and handling instructions.
Shipping:
- The boxes are loaded onto pallets for safe transportation.
- The pallets are wrapped in plastic to protect them from moisture and damage.
- The pallets are labeled with shipping information and handling instructions.
- The product is shipped via standard ground transportation.
FAQ:
1. What is the brand name of the Fiberglass Pipe Insulation product?
The brand name of the Fiberglass Pipe Insulation product is Fanryn.
2. Where is the Fiberglass Pipe Insulation product manufactured?
The Fiberglass Pipe Insulation product is manufactured in China.
3. Does the Fiberglass Pipe Insulation product come with any certification?
Yes, the Fiberglass Pipe Insulation product comes with an SGS fireproof certificate.
4. What is the minimum order quantity for the Fiberglass Pipe Insulation product?
The minimum order quantity for the Fiberglass Pipe Insulation product is 1*40 ft container.
5. What is the payment and delivery details for the Fiberglass Pipe Insulation product?
The payment terms for the Fiberglass Pipe Insulation product is 100% TT and the delivery time is 7-15 work days. The product is packaged in plastic bags and the supply ability is 300 containers per month.
